Telehandler

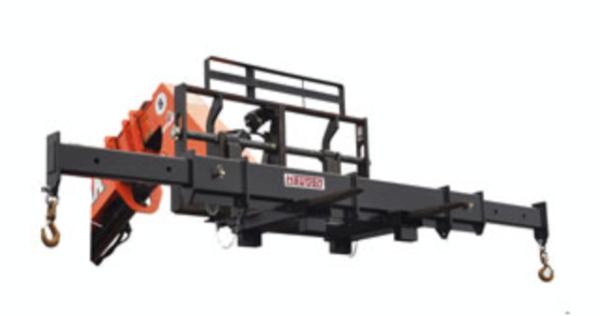

Spread Bar 8' - 12'
- The fork pockets hold the Spreader Bar at 24" on center
- Comes equipped with two 5 ton swivel hooks
- Fork Pockets fit tines up to 3.50" x 7.50" wide
- Secures to your Fork Tines with a pin.
| Spread | Lifting Capacity | Weight |
|---|---|---|
| Center Position - Single Point Load | 10,000 lbs. | 580 lbs. |
| Point Loads @ 65.375" spread position | 5,000 x 2 = 10,000 lbs. | |
| Point Loads @ 97.88" spread position | 4,000 x 2 = 8,000 lbs. | |
| Point Loads @ 121.88" spread position | 3,500 x 2 = 7,000 lbs. | |
| Point Loads @ 145.88" spread position | 3,000 x 2 = 6,000 lbs. |
