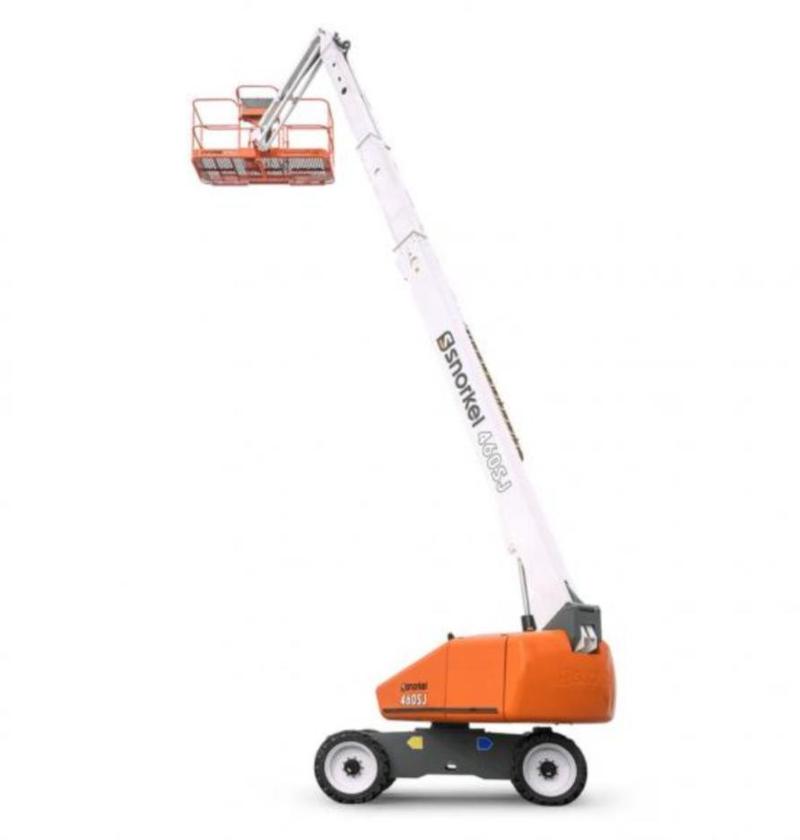

Snorkel 460SJ Boom Lift
Platform Height 46'
The Snorkel 460SJ mid-sized telescopic boom lift was built to handle rough terrain. Fully proportional hydraulics deliver power and precision, and a jib offers flexibility on the job. The 460SJ also features powerful 4-wheel drive, minimal tailswing and 50% gradeability.
| Max. working height | 52' |
| Max. platform height | 46' |
| Max. horizontal reach | 42' |
| Platform size | 8' x 3' |
| Overall width | 7' 7" |
| Transport Width | 6' 10" |
| Transport Length | 21' 6" |
| Transport Height | 9' 6" |
| Stowed height | 7' 10" |
| Ground clearance | 12.5" |

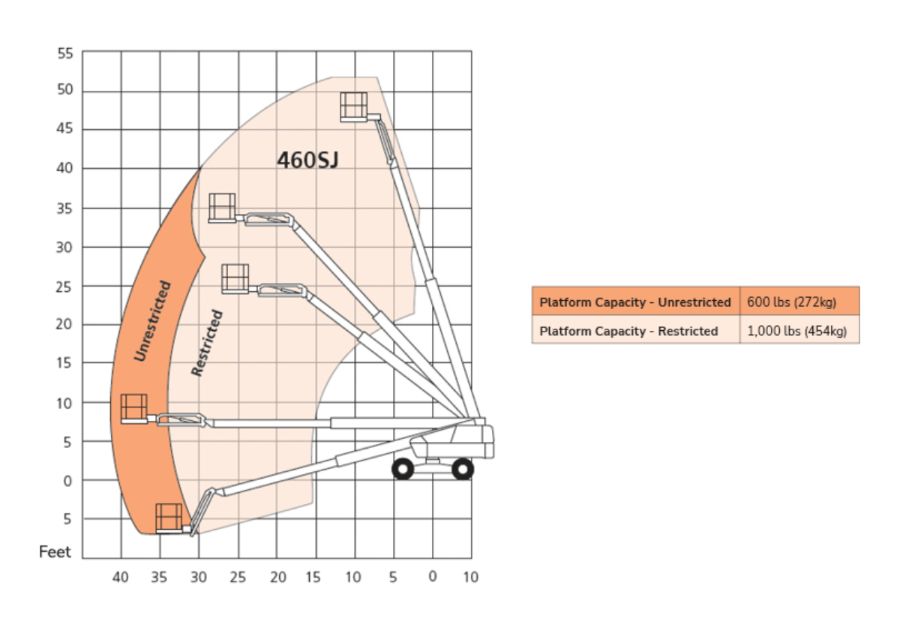

| Platform capacity – unrestricted | 600 lbs |
| Platform capacity – restricted | 1,000 lbs |
| Max. drive height | 46' |
| Max. wind speed | 28 mph |
| Max. drive speed (elevated) | .75 mph |
| Max. drive speed (stowed) | 4 mph |
| Raise / lower time | 55 / 55 seconds |
| Gradeability | 50% |
| Jib length | 5' 6" |
| Jib arc | 135° |
| Platform rotation | 178° |
| Superstructure rotation | 360° continuous |
| Tailswing | 35.5" |
| Inside turning radius | 9' 10" |
| Outside turning radius | 16' 7" |
| Tires | 355/55 D625 foam filled lug |
| Controls | All proportional controls |
| Drive system | 4 wheel drive |
| Power source | Kubota 24.9hp (18.6kW) diesel Tier 4 Final |
| Auxiliary power unit | 12V DC |
| Weight | 17,260 lbs |
| Fuel Tank Capacity | 22 gal |
