Caterpillar CB14 Smooth Drum Roller

Compaction Equipment

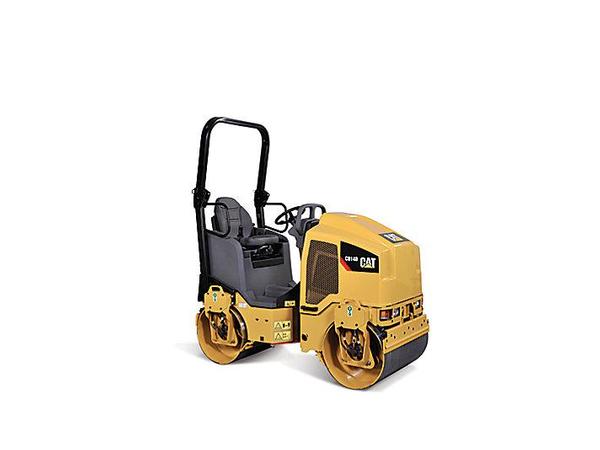

Caterpillar CB14 Smooth Drum Roller

Compaction: 2,318 lbs

Compacting to specifications is critical for soil, landfill, and paving applications. Cat compactors are specifically designed for all compaction operations.

  • Operating Weight with 3,571 lbs
  • Operating Weight at Rear Drum 2,204 lbs
  • Operating Weight at Front Drum 1,851 lbs
  • Curb Clearance 14.5 in
  • Ground Clearance 10 in
  • Travel Speed Max 5 mph
  • Engine Model Cat C1.1
  • Gross Power 22 hp
  • Overall Length 80 in
  • Height with 94 in
  • Compaction Width 30 in
  • Overall Width 40 in
  • Drum Width 30 in
  • Drum Diameter 22.5 in
  • Frequency 3,200 vpm
  • Centrifugal Force Maximum 2,318 lbs
  • Vibration Selection Front or both
  • Fuel Tank Capacity 7.9 gal
  • Water (Spray) Tank Capacity 39.6 gal
