Mini Excavators

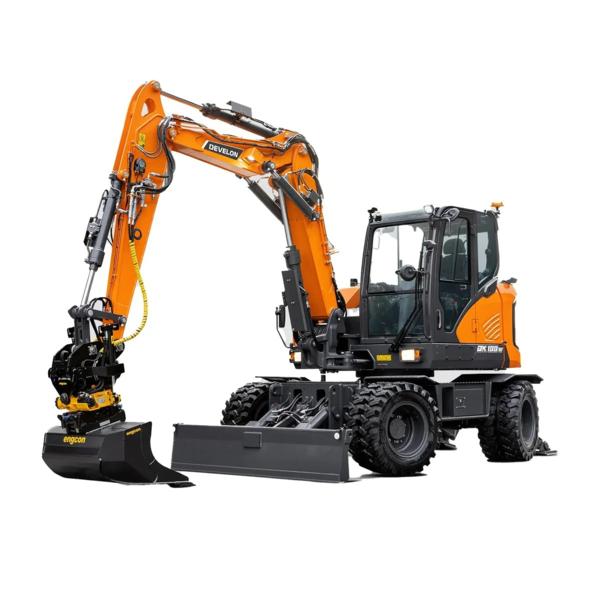

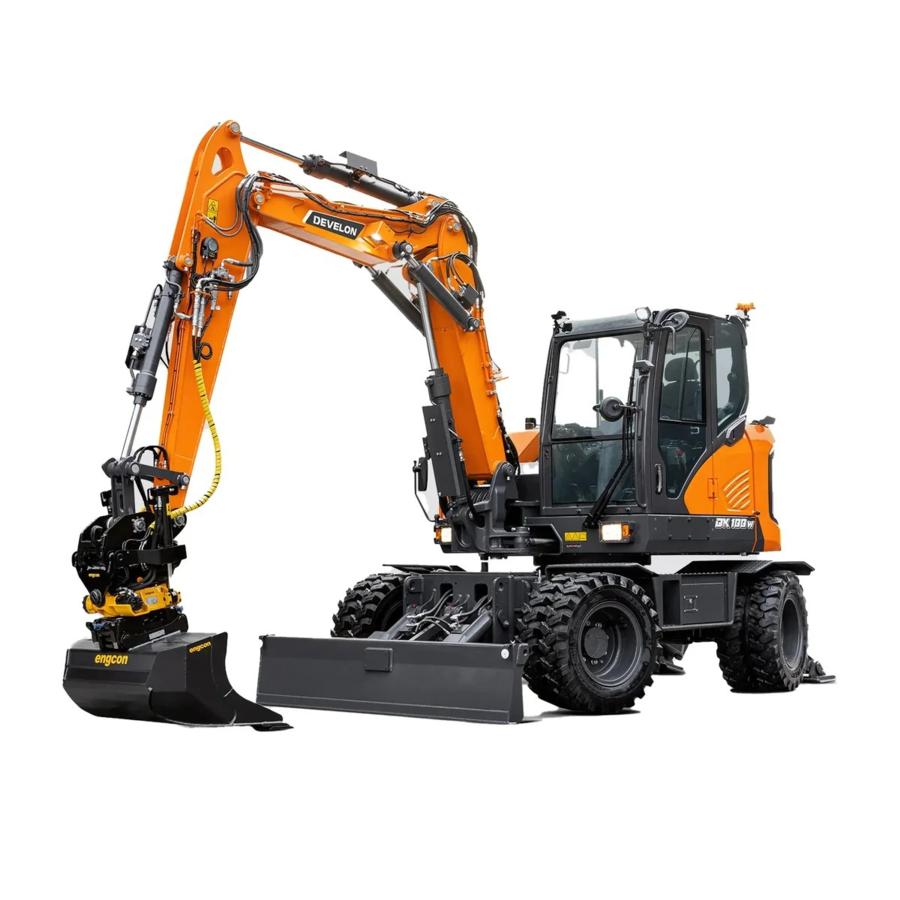

Develon DX100W Wheeled Excavator
Operating Weight 25,221 lbs
Get the power of a tracked excavator with the speed, mobility, and agility of a wheeled machine. The Develon DX100W-7 is a high-performing 11-ton compact wheeled excavator engineered specifically for tight urban jobsites, utility work, and street maintenance.
Forget the hassle and cost of a trailer for short-distance moves—this machine drives straight to the site at speeds up to 24 mph, featuring rubber tires that won't tear up asphalt or concrete. Equipped with an articulated boom and specialized 4-wheel steering modes, it squeezes into tight lanes and around obstacles where traditional machines get stuck.
| Net Power | 100.6 hp @ 2000 rpm |
| Emissions | Tier 4 Final / Stage 5 |
| Operating Weight | 25,221 lbs |
| Counterweight | 2,700 lbs (1.35T) |
| Overall Length | 21'4" |
| Overall Width | 7'10" |
| Overall Height | 10'2" |
| Wheelbase | 7'10" |
| Ground Clearance | 1'2" |
| Max Digging Depth | 13'11" |
| Max Digging Reach (ground) | 24'3" |
| Max Dump Height | 20'6" |
| Boom Swing | 60° left / 60° right |
| Bucket Capacity | 0.37 yd³ (standard) |
| Main Pump Flow | 52.84 gal/min × 2 |
| System Pressure | 4,641 psi |
| Swing Speed | 10.6 rpm |
| Bucket Breakout Force | 13,173 lbs |
| Arm Digging Force | 8,977 lbs |
| Max Travel Speed | 23.6 mph |
| Steering Modes | 2-wheel, 4-wheel, crab steer |
| Tire Size | 8.25-20 |
| Drive | 4x4 |
| Axles | Oscillating front axle |
| Fuel Capacity | 52.8 gal |
| Hydraulic Tank Capacity | 34.3 gal |
| DEF Tank Capacity | 5.8 gal |
| Cab & Controls | Heated air-suspension seat, 8" TFT LCD display, 270° AVM camera system, LED work lights, proportional joystick controls, auto-idle & auto-shutdown |
